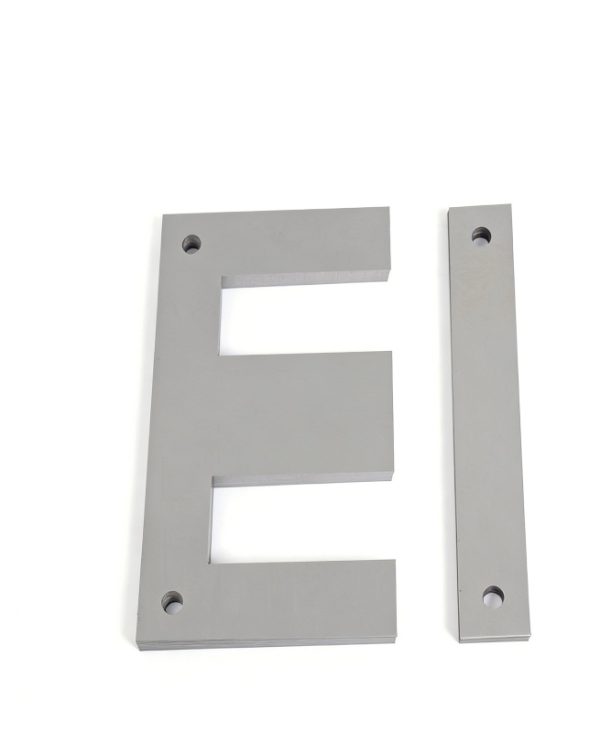

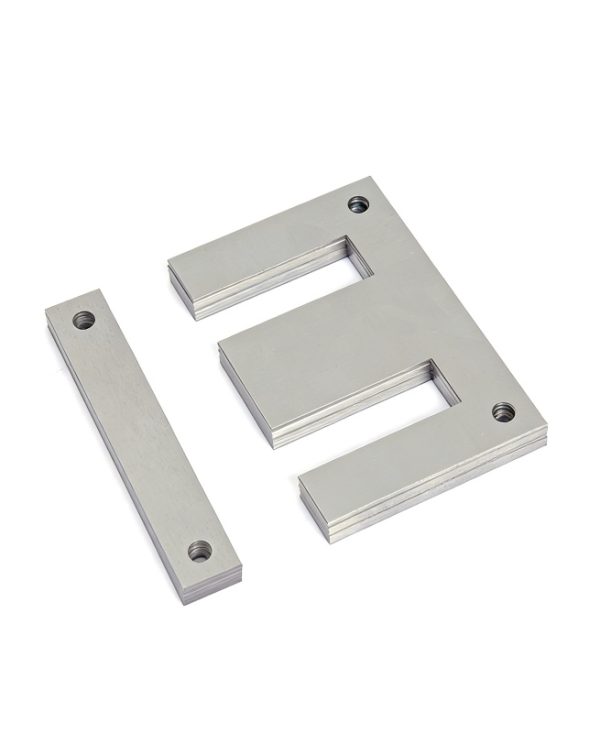

EI Lamination Core – The Silent Workhorse of Electrical Equipment

Walk into any motor or transformer factory, and you’ll likely see stacks of neatly arranged, cookie-like metal pieces. That’s the EI lamination core. Don’t let its simple appearance fool you — as the “heart” of motors and transformers, its quality directly impacts energy efficiency and equipment lifespan.

How It’s Made

The manufacturing process starts with ultra-thin silicon steel coils. After slitting and precision stamping, the steel is cut into standard E-shaped and I-shaped pieces. The most critical step is annealing (heat treatment) , which relieves internal stresses from stamping and restores the grain orientation of the silicon steel — this significantly reduces core loss. Finally, hundreds of laminations are stacked and secured through interlocking or welding, then coated with insulation to prevent eddy currents between sheets.

Key Features & Performance

Silicon steel became the go-to soft magnetic material for good reason. Adding silicon increases electrical resistivity, which dramatically reduces eddy current loss. Meanwhile, precise grain orientation minimizes hysteresis loss — simply put, it saves electricity. High magnetic permeability and low core loss make EI laminations the standard choice for AC applications.

What to Watch For

Making a good lamination core isn’t as easy as it looks. First, burrs are the enemy — even micron-level burrs along the stamped edges can cause shorts between laminations, leading to hot spots. Second, misaligned E and I pieces increase magnetic resistance, hurting efficiency. Finally, during stacking, pressure must be just right: too tight and you’ll damage the insulation coating; too loose and the core will vibrate and hum under load.

Where You’ll Find It

EI lamination cores are everywhere. In power substations and neighborhood distribution boxes, they form the backbone of mains-frequency transformers stepping voltage up or down. On factory floors and inside household appliances, they’re the driving force in AC motors. And with the current boom in electric vehicles and robotics, demand for high-frequency, low-loss laminations is growing fast. From massive grid transformers to compact robotic joints, the EI lamination core remains one of the most essential — yet overlooked — components keeping our electrified world running.
