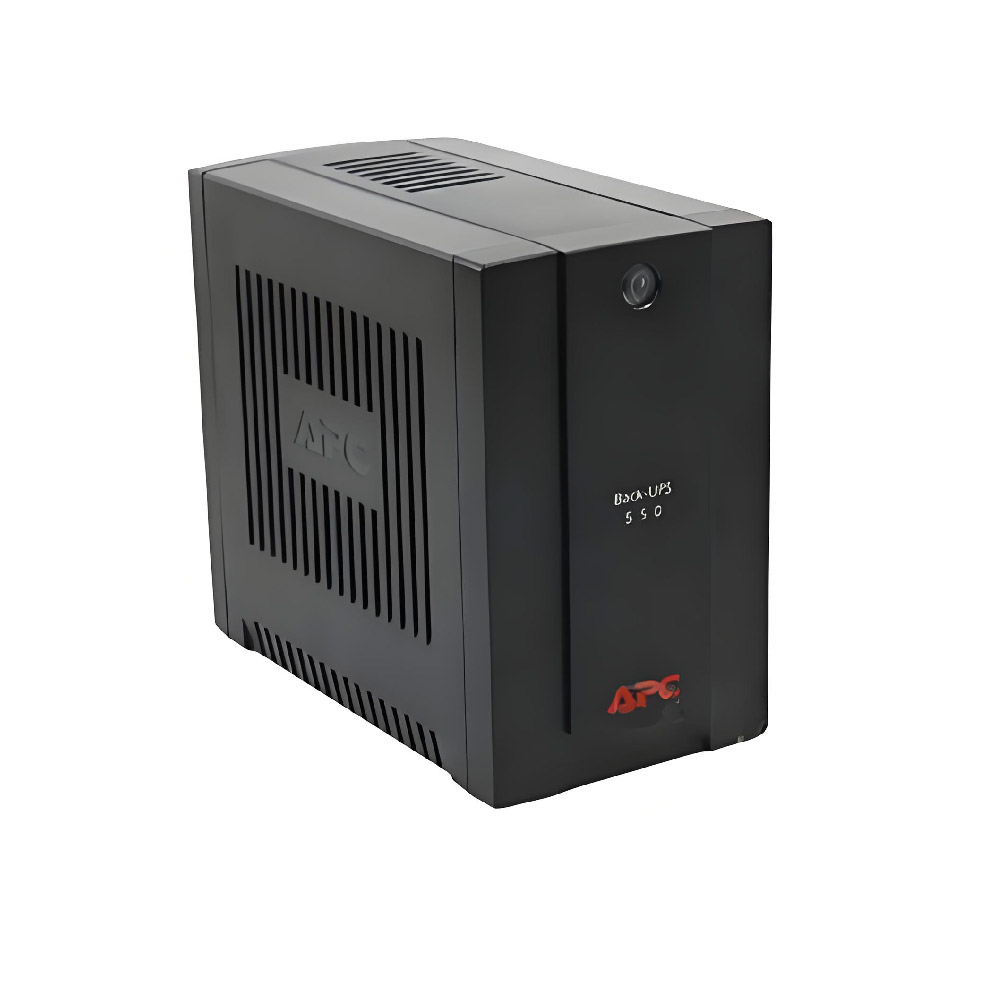

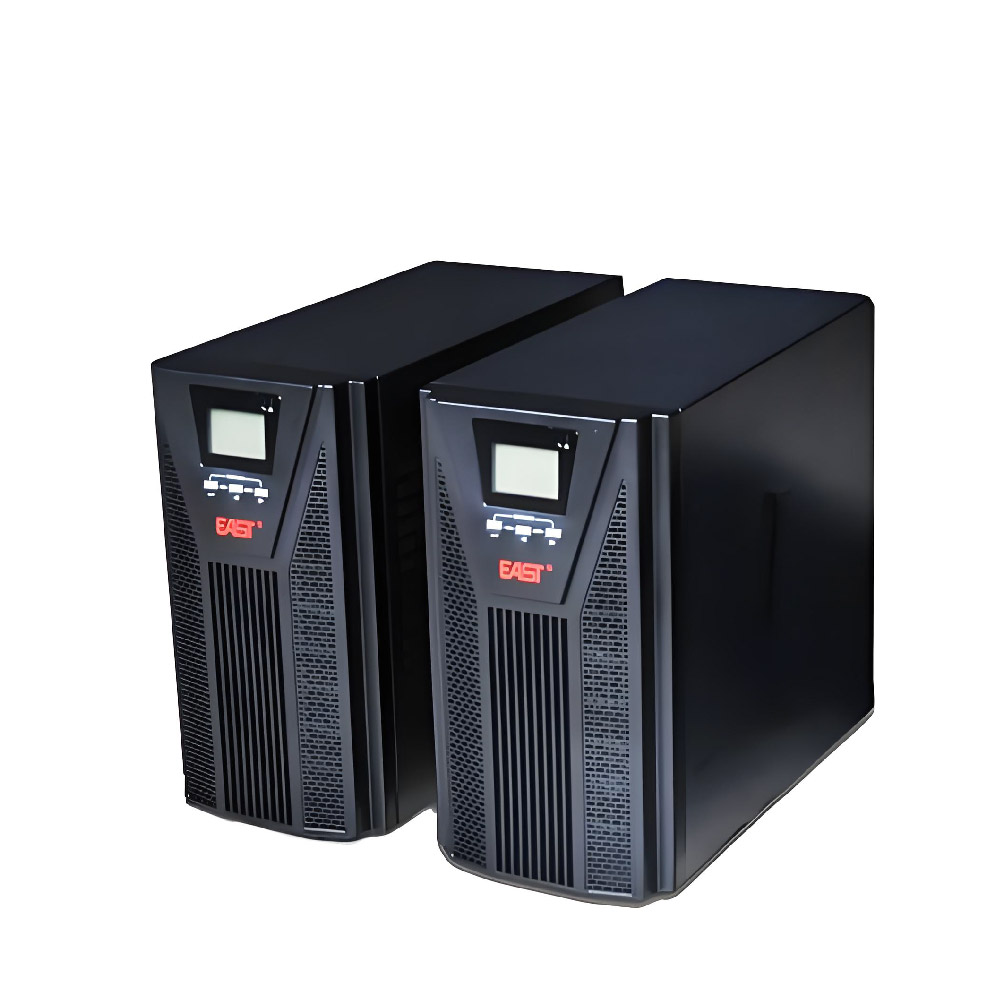

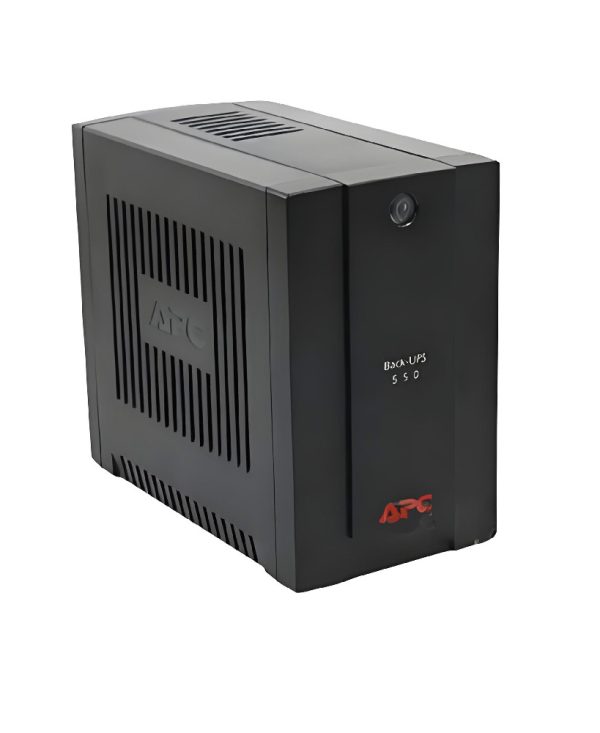

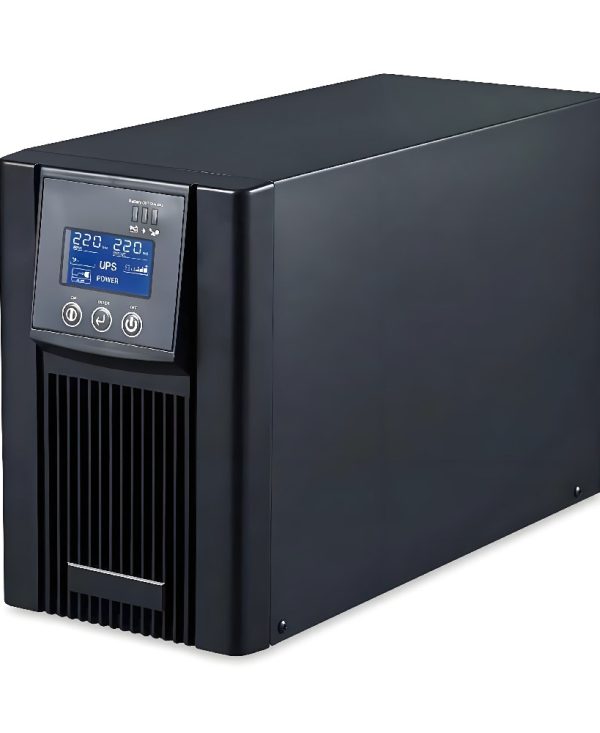

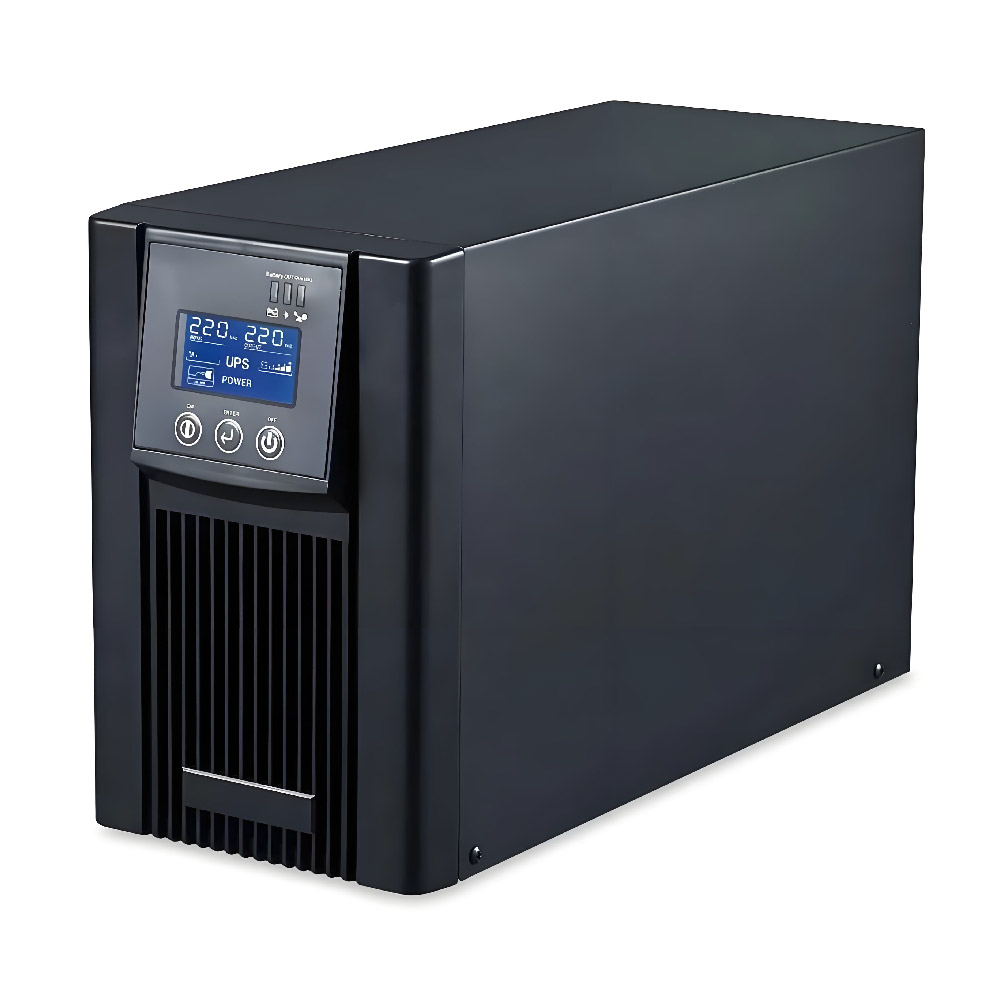

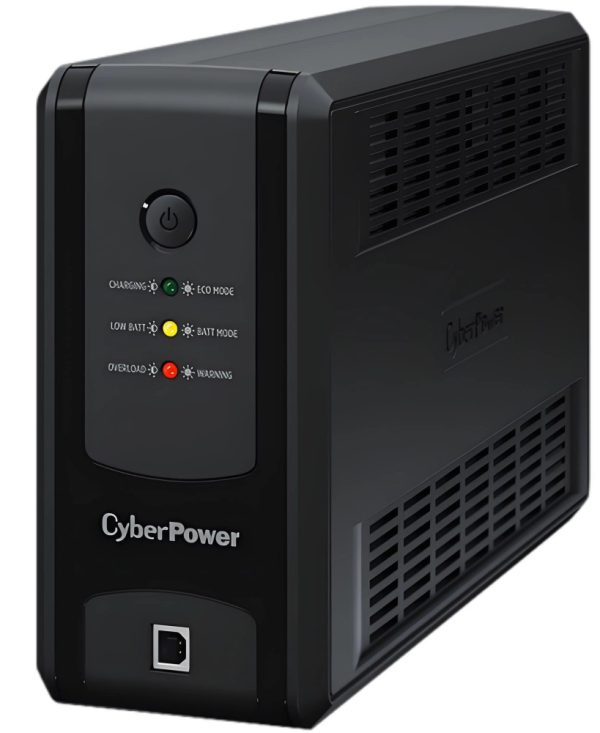

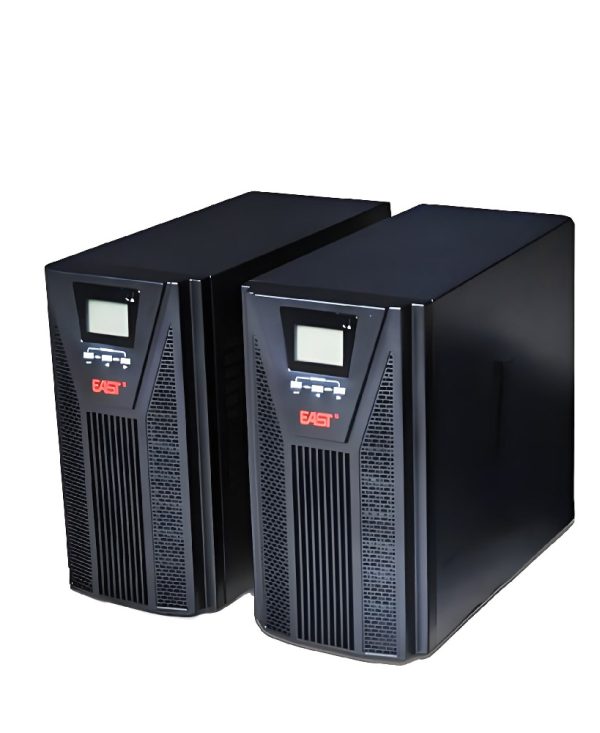

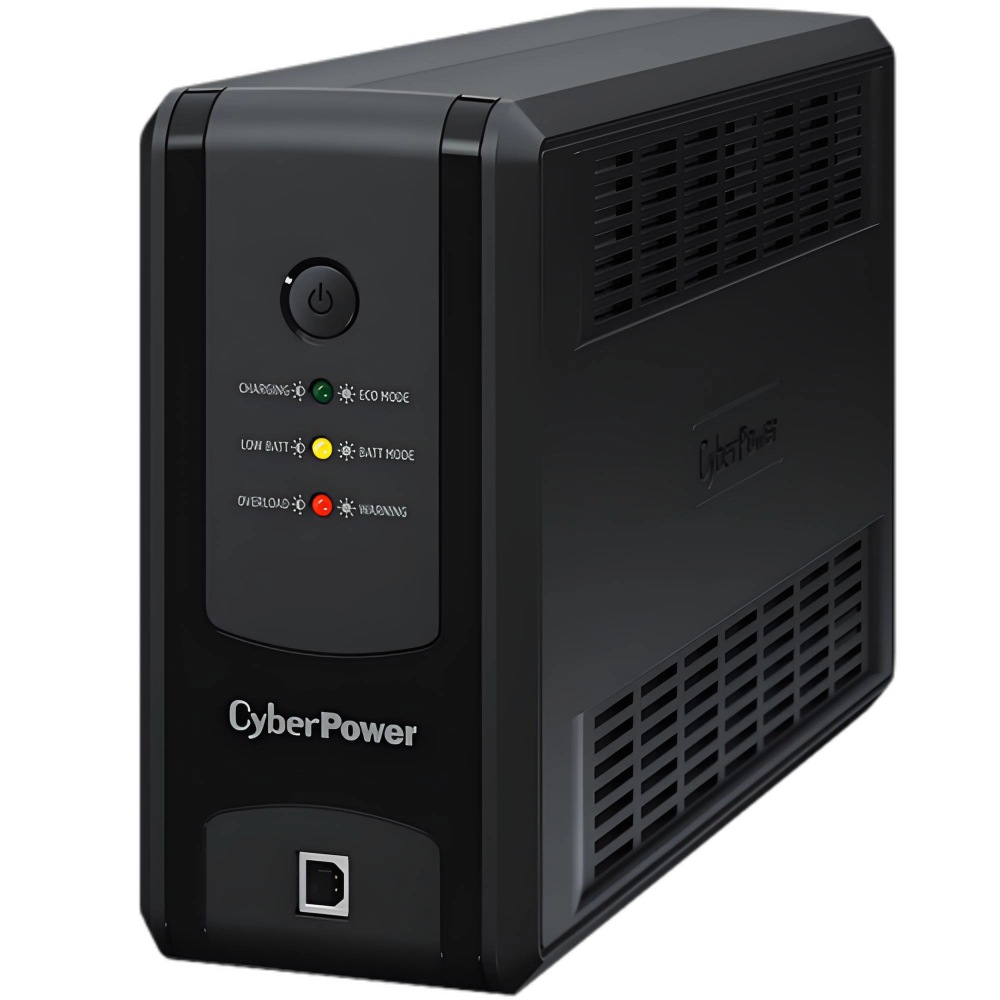

Uninterruptible Power Supplies

Description

Uninterruptible Power Supplies (UPS) and Silicon Steel Cores: Core Synergy, Key to Performance

As a core piece of power protection equipment, uninterruptible power supplies (UPS) provide stable, uninterrupted power to precision instruments, servers, and industrial equipment. Silicon steel cores are the core components of UPS inverters, transformers, and reactors, directly determining the UPS’s conversion efficiency, stability, and service life. The two are deeply intertwined and indispensable to one another.

The manufacturing process for silicon steel cores and key UPS components is precise and rigorous. First, cold-rolled grain-oriented or non-grain-oriented silicon steel sheets are selected and cut into standard blanks via slitting and cross-cutting. These blanks are then formed through high-speed stamping to ensure dimensional accuracy. Next, the blanks are tightly laminated with controlled stacking ratios to enhance magnetic circuit density. After being secured by riveting or welding, they undergo an insulation coating process to isolate eddy currents; Finally, heat treatment is applied to eliminate internal stresses, reduce losses, and adapt to the high-frequency operational demands of UPS systems.

In terms of performance, silicon steel cores offer four key advantages: low iron loss, high magnetic permeability, high saturation resistance, and low noise. Low iron loss reduces heat generation during UPS operation and lowers energy consumption; high magnetic permeability increases magnetic flux, enhancing power conversion efficiency; excellent saturation resistance enables the core to withstand instantaneous current surges, ensuring stable UPS switching; and the low-noise characteristic makes it suitable for quiet environments such as server rooms and offices.

UPS applications span data centers, medical equipment, industrial automation, communication base stations, precision instruments, and high-end household appliances. Standard standby UPS systems use conventional silicon steel cores, while online and high-frequency UPS systems require high-grade silicon steel cores to meet the demands of high frequency, high efficiency, and high stability.

Considerations for selection and use: Match the silicon steel grade; for high-frequency applications, select low-loss, high-grade materials; strictly control lamination alignment to prevent increased losses due to gaps; ensure proper moisture and dust protection to prevent damage to the insulation layer; avoid overloading to protect the core and maintain overall system stability. The quality of the silicon steel core is the cornerstone of efficient and reliable UPS operation.
