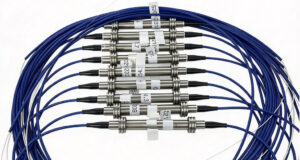

Fiber Bragg Grating Microstrain Sensor

Technical Breakthroughs from Micron‑level Sensing to Engineering Applications

In the field of structural health monitoring, engineers have long faced a vexing paradox: to accurately capture microscopic deformations, smaller sensors are needed; yet as sensor size decreases, measurement performance plummets. This vicious cycle has plagued the industry for decades, until recently, when a Chinese-made fiber Bragg grating sensor with a diameter of just 1 mm made its debut—thinner than a pencil lead, yet capable of precisely detecting strain changes as small as one millionth.

I. Nanoscale Ingenuity Behind Millimeter-Scale Dimensions

The dilemma of traditional strain sensors is akin to trying to measure the temperature of a cell with a thermometer: when the gauge length is reduced to the millimeter scale, the signal-to-noise ratio of metal-foil strain gauges deteriorates sharply. The innovation of this fiber-optic sensor lies in its ability to take nanotechnology to new heights.

Key Technological Breakthroughs:

• “Onion-like” Encapsulation Structure: Utilizing materials with a gradient in elastic modulus, the structure consists, from the inside out, of a sensitizing layer (high hardness), a buffer layer (good elasticity), and a protective layer (corrosion resistance)—much like dressing the diffraction grating in a custom-made “nano-protective suit.”
• Photonic crystal effect: A Bragg grating is etched onto the 125-μm fiber core, with a reflection wavelength sensitivity to strain changes as high as 1.2 pm/με (a 1-microstrain shift results in a 1.2-picometer wavelength shift)
• Temperature self-compensation: Through a dual-grating differential design, temperature effects are automatically eliminated, ensuring measurement accuracy even when the spacecraft experiences extreme temperature fluctuations ranging from -50°C to 120°C.

Comparative tests conducted by a national key laboratory showed that when measuring micro-strain of 0.01 mm, traditional strain gauges had an error of up to 15%, whereas this microsensor had an error of only 0.5%—equivalent to the precision of measuring the diameter of a human hair with a vernier caliper.

II. Survival Strategies: From the Laboratory to the Engineering Site

During the monitoring project for the Qingdao Jiaozhou Bay Cross-Sea Bridge, engineers faced a daunting challenge: seawater corrosion caused traditional sensors to fail on average within three months. In contrast, the fiber-optic sensors—encased in titanium alloy—not only withstood 24 months of salt spray erosion but also detected an abnormal displacement of 0.008 mm in the bridge pier foundations, providing early warning of the risk of pile foundation scouring.

Three Secrets to Surviving Extreme Environments:

1. Resistance to Electromagnetic Interference: The all-optical measurement principle ensures stable operation even in the intense radiation environment of a nuclear power plant.
2. Resistance to Chemical Corrosion: The polyimide coating withstands the test of acidic and alkaline vapors in chemical plants.
3. Resistance to Mechanical Shock: After 100,000 vibration tests, performance degradation is less than 0.1%.

Even more remarkable is its installation flexibility—during wing testing for a certain type of stealth fighter jet, 128 sensors were affixed to the composite surface like an “electronic tattoo,” maintaining the aerodynamic profile while mapping the microstrain distribution across the entire wing.

III. Disruptive Impact Across Industries

The true power of this sensor lies in its ability to revolutionize measurement paradigms across multiple industries:

1. Microstructural Diagnostics in Civil Engineering

During the construction of the Shanghai Tower, engineers embedded sensors into the concrete shear walls. By monitoring microstrain during the cement hydration process, they precisely controlled the cooling rate, reducing the crack occurrence rate by 72%. This is equivalent to equipping the building with a “CT scanner.”

2. Extreme Testing in Aerospace

During testing of the Long March 5 rocket’s fuel tank, 200 microsensors formed a three-dimensional monitoring network, providing real-time feedback on the microstrain at each weld point. When data indicated abnormal strain in a specific area, technicians promptly reinforced the structure, averting a test launch failure that could have cost hundreds of millions of yuan.

3. The Smart Car Safety Revolution

A new energy vehicle manufacturer integrated sensors into battery modules; when 0.1 mm of electrode plate deformation is detected, the circuit is immediately cut off. This technology advances the early warning time for battery pack thermal runaway by 15 minutes, setting a new safety record.

IV. The Future: When Sensors Become “Nerve Endings”

On the eve of a technological explosion, we may be witnessing a paradigm shift in metrology:

• Self-powered technology: Photostrictive materials currently under testing may enable “perpetual” sensors that require no external power supply.
• AI diagnostic systems: A deep learning algorithm developed by a research team can predict the remaining service life of structures based on strain patterns, with an accuracy rate of 91%.
• Quantum sensing upgrades: A new type of grating based on quantum dots is expected to boost resolution to the 0.001 με range.

A sensor just 1 millimeter in size opens up a new dimension for understanding the microscopic world. Perhaps in the not-too-distant future, every bridge, every airplane, and every piece of equipment will be equipped with such “nerve endings.” And when we look back on today, we will realize that a fiber optic cable thinner than a strand of hair has quietly rewritten the rules of precision measurement.
